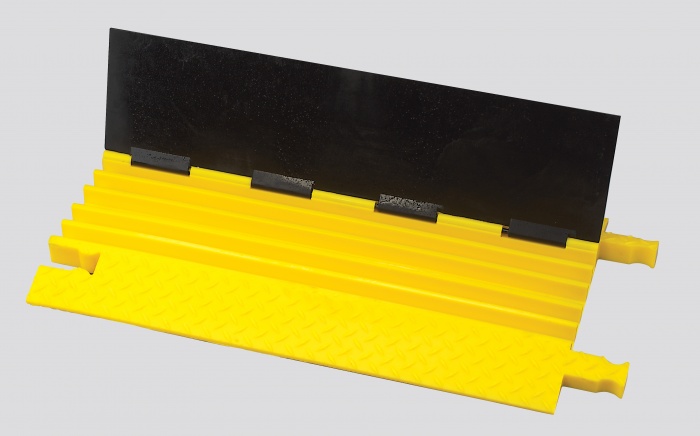

Features
- Modular interlocking design with "Dog Bone" Connectors between lengths
- Reinforced hinged lid for easy cable placement
- Safety Warning Symbols Integrated into the Mould design
- Designed for low pedestrian traffic applications such as conventions and events

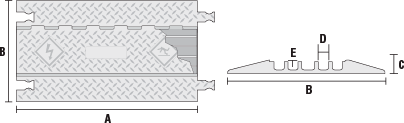

Specifications
Dog Bone
Connectors
| A: Length | 36 in. | 91.44 cm |
| B: Width | 18.0 in. | 45.7 cm |
| C: Height | 2.0 in. | 5.1 cm |
| D: Channel Width | 1.25 in. | 3.18 cm |
| E: Channel Height | 1.25 in. | 3.18 cm |
| Weight | 21.0 lb. | 9.53 kg |
*NOTE: Centre channel width is 1.65 in. (4.19 cm)
LOAD CAPACITY
Max load tested at 70°F (21°C)5,250 lb./Tyre (2,381 kg) and 10,500 lb./Axle (4,762 kg)
