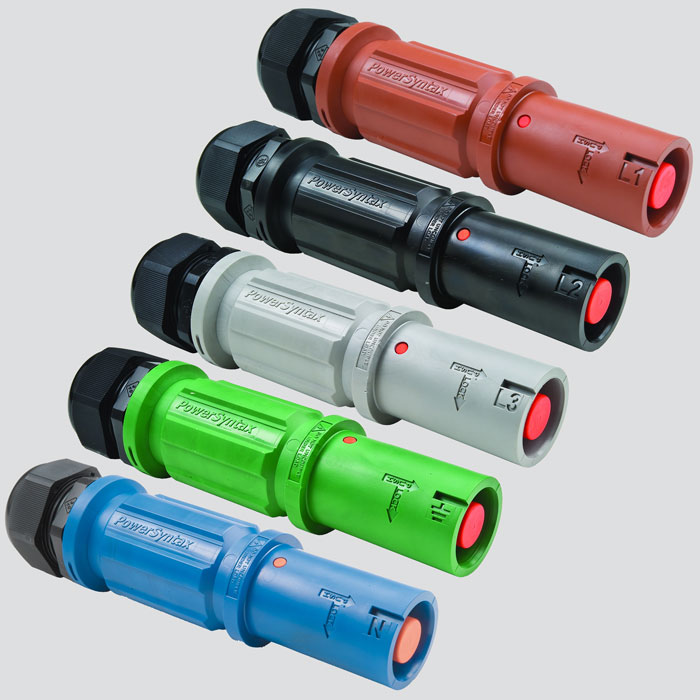

Syntax SPX Line Source Set up to 400A (Lines 1, 2, 3, E + N)

Syntax SPX Line Source Set up to 400A (Lines 1, 2, 3, E + N)
Zoom  Zoom

Syntax

Our Price:  CALL 01908 587 060
List Price:  £227.70
+



Brand:  Syntax


Features

  • Innovative ergonomic hand grip for easy handling
  • Finger protection IP2X to prevent accidental touching of live contact parts
  • Contact to housing retention through flame-retardant UL94-VO plastic cotter pin
  • No special tools are required for assembling
  • Bayonet lock with secondary locking pin
  • Special ergonomic release-key (supplied separately) for the releasing of the secondary locking pin
  • Set screw termination for cables 35mm2-150mm2
  • Watertight IP68 plastic cable gland M40 for cable strain relief retention range 22-32mm
  • Permanent markings to identify phase/line and safety information are embossed on connector's shell
  • Maximum current of 400A

Specifications

LS Specifications
A: Length223 mm
B: Diameter (max)58.6 mm
C: Diameter43.2 mm
