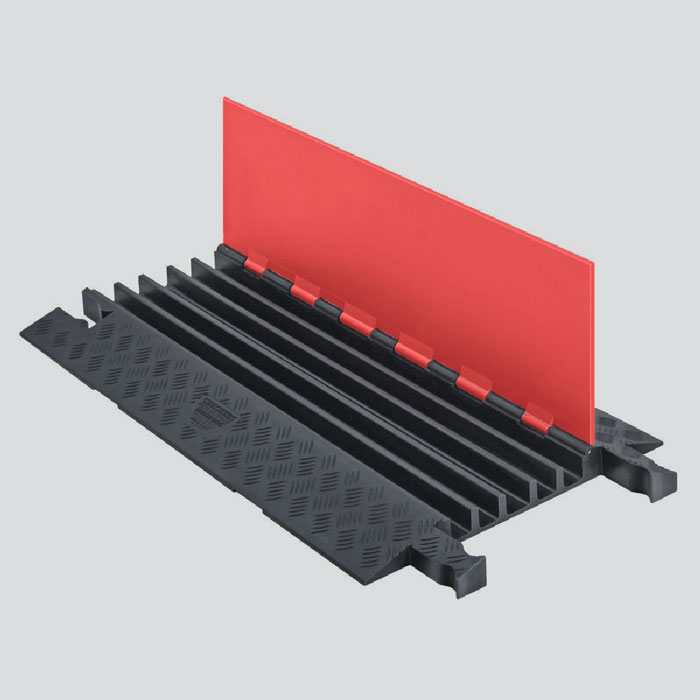

Guard Dog 5 Channel General Purpose Cable Protector (GD5X125-O/B)

Guard Dog 5 Channel General Purpose Cable Protector (GD5X125-O/B)
Zoom  Zoom

Guard Dog

Our Price:  CALL 01908 587 060
List Price:  £221.44

Brand:  Guard Dog


  • Modular Interlocking Design with 'Dog Bone' Connectors to add multiple protectors to increase length
  • Reinforced Hinged lid for easy cable placement
  • Patented 5-bar tread surface for maximum traction
  • Safety warning symbols Integrated into the mould design
  • Orange and Black design to increase visibility against any background
  • Reaction Injection Moulded (RIM) Polyurethane Construction is abrasion, impact and weather resistant whilst being UV stable
  • Ideal for use in the Events and Entertainment Industries


GD5X125 Specifications
Dog Bone Connectors

Dog Bone

A: Length36 in.91.44 cm
B: Width19.75 in.50.17 cm
C: Height1.875 in.4.76 cm
D: Channel Width*1.339 in.3.4 cm
E: Channel Height1.325 in.3.37 cm
Weight21 lb.9.6 kg

*NOTE: Centre channel width is 1.705 in. (4.33 cm)


Max load tested at 70°F (21°C)
10,500 lb./Tyre (4,763 kg) and 21,000 lb./Axle (9,526 kg)
