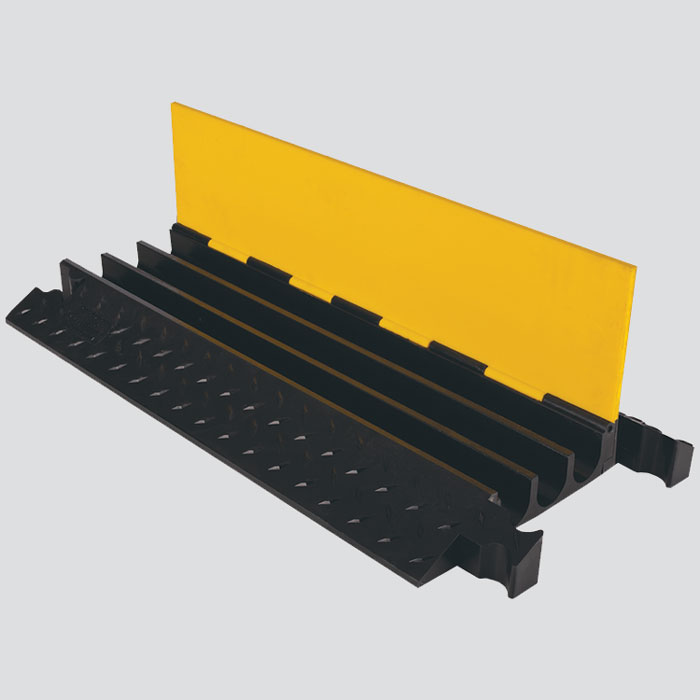

Features
- Modular interlocking design with "Dog Bone" Connectors between lengths
- Reinforced hinged lid for easy cable placement
- Safety Warning Symbols Integrated into the Mould design
- Thick lid and base designed for high volumes of traffic

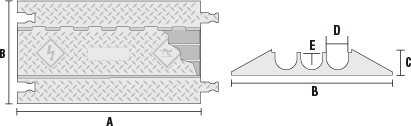

Specifications
Dog Bone
Connectors
| A: Length | 36 in. | 91.44 cm |
| B: Width | 18.5 in. | 50.8 cm |
| C: Height | 2.875 in. | 7.3 cm |
| D: Channel Width | 2 in. | 5.08 cm |
| E: Channel Height | 2.125 in. | 5.4 cm |
| Weight | 34.15 lb. | 15.5 kg |
LOAD CAPACITY
Max load tested at 70°F (21°C)14,210 lb./Tyre (6,446 kg) and 28,420 lb./Axle (12,892 kg)
